69 Wildcat

Tags:

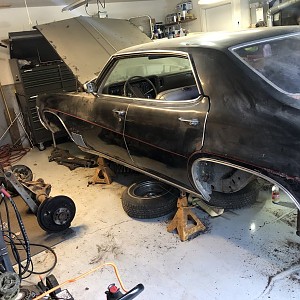

  • EDhOx1s7QH2InUZKy6hJtw.jpg 57723175383__34052D24-FA46-4498-8DAC-7F1149E2A509.JPG Getting it torn down and starting to cut out all the frame rot. I'll post up the progress as it comes in. 57723175383__34052D24-FA46-4498-8DAC-7F1149E2A509.JPG EDhOx1s7QH2InUZKy6hJtw.jpg

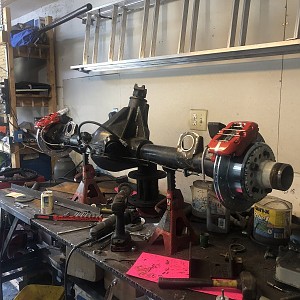

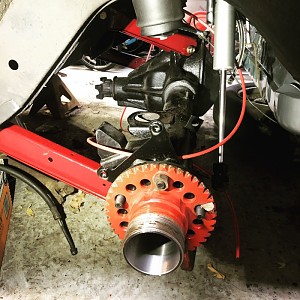

    Got the stock rear axle modded up with the wilwood dynapro calipers and rotors

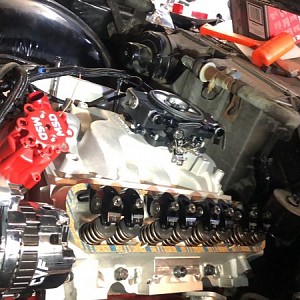

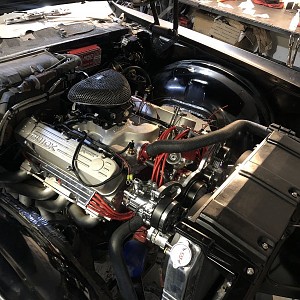

    Got the Edelbrock heads and intake snugged down today. The CVF serpentine system is also all buttoned up. I had to grind down a cheap 19mm socket to tighten down the head studs from ARP. The provision that's milled on the far ends of the heads (4 in total) wouldn't take a thin-walled 3/4 inch socket. Probably not an issue if you use head bolts. Also, the Lunati roller rockers and pushrods should be here tomorrow. Baby steps....

User Comments

To post comments, simply sign up and become a member!
  1. 69wildcatgs

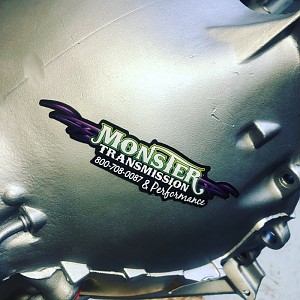

    Monster transmission is now installed......however now I need a custom crossmember. My stock unit will not take the same trans mount that the new trans takes. Plus the clearance for the exhaust collectors are at a wider point than the stock one allows. More parts on the way.
  2. 69wildcatgs
    Got some goodies in the mail today. TA perforamnce valve covers, MSD pro billet distributor and my FiTech 550 EFI kit. still waiting for the new intake and gaskets. Also picked up a serpentine belt kit from CFV. these are AMAZING! pictures will be posted when all parts get in and installed.
  3. Michael_G
    Good deal! Looking forward to the transformation... :D
    -MIG
  4. Darron72Skylark
    That’s pretty neat, love to see pictures of your progress!
  5. RoseBud68
    Cool land yacht.
